Champion Advantage Series
Advantage Series
The Advantage Series units come fully packaged with pre-installed accessories. They are highlighted by our quick-ship program so the compressor arrives quickly, ready to install and operate. Each new assembled unit has a 3-year warranty on the compressor pump.

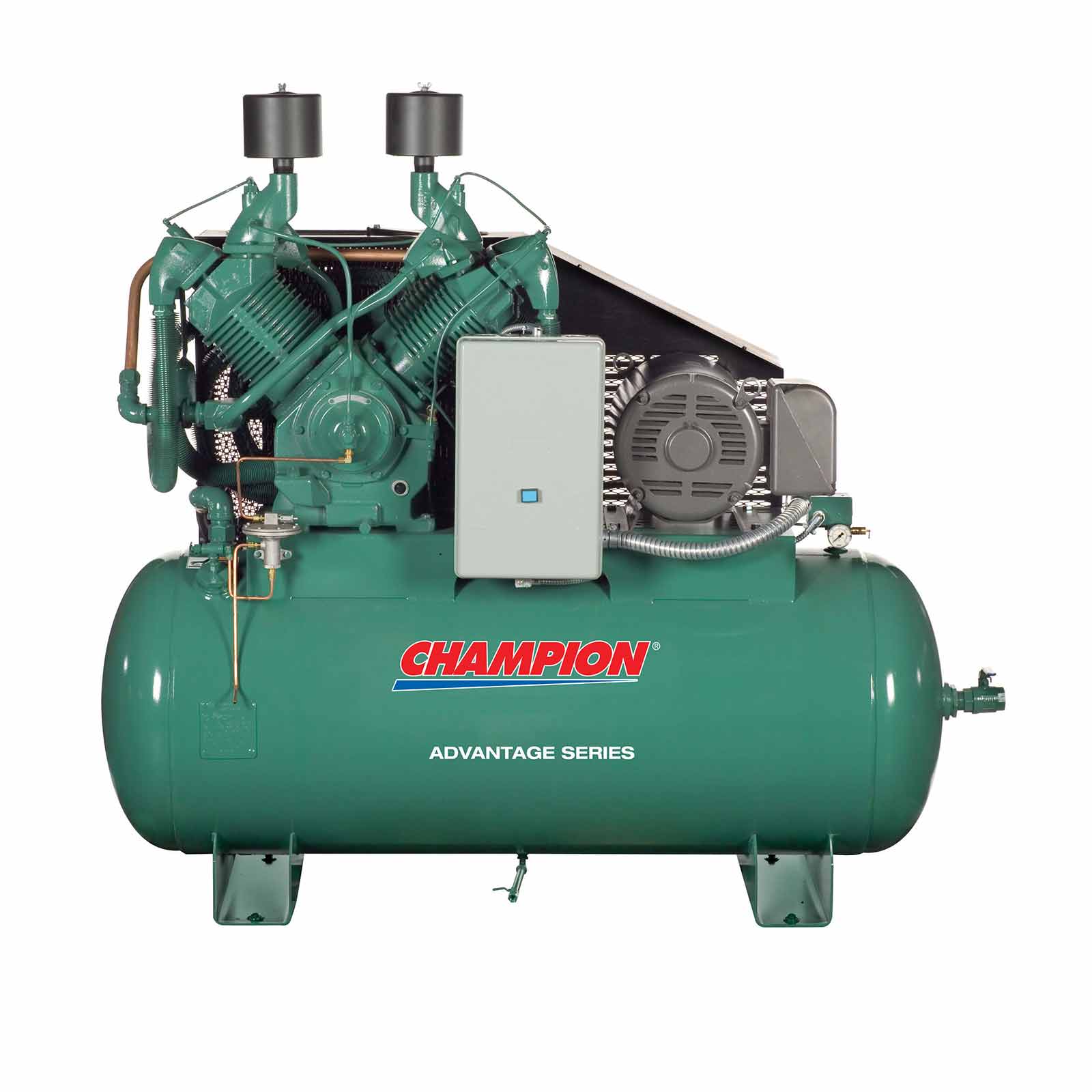

Two Stage, Splash Lubricated (5-25 HP) Reciprocating Air Compressor
| Model | HP | Voltage | Tank Gallons | Style | Delivered CFM @ 175 | Net Weight |
|---|---|---|---|---|---|---|
| VR5-8 | 5 | 230-1, 208/230-3 | 80 | Vert | 17.3 | 535 |
| HR5-8 | 5 | 230-1, 208/230-3 | 80 | Horiz | 17.3 | 535 |
| HR5D-12 | 5 | 230-1, 208/230-3 | 120 | Horiz | 34.6 | 980 |
| VR7F-8 | 7.5 | 230-1, 208/230-3 | 80 | Vert | 23.1 | 570 |
| HR7D-12 | 7.5 | 230-1, 208/230-3 | 120 | Horiz | 51.6 | 1305 |
| VR10-12 | 10 | 208/230-3 | 120 | Vert | 34.8 | 890 |
| HR10-12 | 10 | 208/230-3 | 120 | Horiz | 34.8 | 890 |
| HR10D-25 | 10 | 208/230-3 | 250 | Horiz | 69.6 | 1725 |
| HRA15-12 | 15 | 208/230-3 | 120 | Horiz | 53.7 | 1110 |
| HRA25-12 | 25 | 208/230-3 | 120 | Horiz | 90.1 | 1365 |
IMPORTANT POINTS
- 2 Stage Splash Lubricated Pump
- Intake Filter and Silencer
- Factory Filled with ChampLub Lubricants
- Belt Guard
- NEMA Rated Electric Motors
- Manual Drive Train
- ASME Code Receivers (80, 120 Gallons)
- Preset Pressure Switch
- Magnetic Starter
- Air Cooled Aftercooler (excluding 5 HP)
- Low Oil Monitor
- Automatic Tank Drain
- Vibration Isolator Pads
- Auto Start/Stop Controls
- Dual Control Standard on 15 HP and Above (optional on 10 HP)
- 460 V Conversion Kits Available
- (5) Year Pro-Rated Compressor Pump Warranty
- (1) Year Package Warranty
- (5) Year Electric Motor Warranty
Advantage Series
The Advantage Series units come fully packaged with pre-installed accessories. They are highlighted by our quick-ship program so the compressor arrives quickly, ready to install and operate. Each new assembled unit has a 3-year warranty on the compressor pump.
Two Stage, Splash Lubricated (5-25 HP) Reciprocating Air Compressor
- 2 Stage Splash Lubricated Pump
- Intake Filter and Silencer
- Factory Filled with ChampLub Lubricants
- Belt Guard
- NEMA Rated Electric Motors
- Manual Drive Train
- ASME Code Receivers (80, 120 Gallons)
- Preset Pressure Switch
- Magnetic Starter
- Air Cooled Aftercooler (excluding 5 HP)
- Low Oil Monitor
- Automatic Tank Drain
- Vibration Isolator Pads
- Auto Start/Stop Controls
- Dual Control Standard on 15 HP and Above (optional on 10 HP)
- 460 V Conversion Kits Available
- (5) Year Pro-Rated Compressor Pump Warranty
- (1) Year Package Warranty
- (5) Year Electric Motor Warranty
| Model | HP | Voltage | Tank Gallons | Style | Delivered CFM @ 175 | Net Weight |
|---|---|---|---|---|---|---|
| VR5-8 | 5 | 230-1, 208/230-3 | 80 | Vert | 17.3 | 535 |
| HR5-8 | 5 | 230-1, 208/230-3 | 80 | Horiz | 17.3 | 535 |
| HR5D-12 | 5 | 230-1, 208/230-3 | 120 | Horiz | 34.6 | 980 |
| VR7F-8 | 7.5 | 230-1, 208/230-3 | 80 | Vert | 23.1 | 570 |
| HR7D-12 | 7.5 | 230-1, 208/230-3 | 120 | Horiz | 51.6 | 1305 |
| VR10-12 | 10 | 208/230-3 | 120 | Vert | 34.8 | 890 |
| HR10-12 | 10 | 208/230-3 | 120 | Horiz | 34.8 | 890 |
| HR10D-25 | 10 | 208/230-3 | 250 | Horiz | 69.6 | 1725 |
| HRA15-12 | 15 | 208/230-3 | 120 | Horiz | 53.7 | 1110 |
| HRA25-12 | 25 | 208/230-3 | 120 | Horiz | 90.1 | 1365 |
