Best in industry motors
Permanent magnet, neodymium boron magnetic steel(NdFeB) motors improve efficiency of our compressors. PM motors feature improved performance , lower weight and longer service life.
Model | HP | Phase | Voltage | HZ | CFM/PSI | Outlet | Weight/LBS |
---|---|---|---|---|---|---|---|
M-10 | 10 | 1 or 3 | 230 | 50/60 | 40.0/116, 31.9/145 | 3/4"NPT | 400 |
M-15 | 15 | 1 or 3 | 230 | 50/60 | 60.0/116, 52.9/145 | 3/4"NPT | 540 |
M-20 | 20 | 1 or 3 | 230 | 50/60 | 77.7/116, 60.0/145 | 3/4"NPT | 540 |
M-10S | 10 | 3 | 460 | 50/60 | 40.0/116, 31.9/145 | 3/4"NPT | 400 |
M.15S | 15 | 3 | 460 | 50/60 | 60.0/116, 52.9/145 | 3/4"NPT | 540 |
M-20S | 20 | 3 | 460 | 50/60 | 77.7/116, 60.0/145 | 3/4"NPT | 540 |
M-30S | 30 | 3 | 460 | 50/60 | 120/116, 102/145 | 1"NPT | 750 |
M-50S | 50 | 3 | 460 | 50/60 | 215/116, 180/145 | 1-1/4"NPT | 1060 |

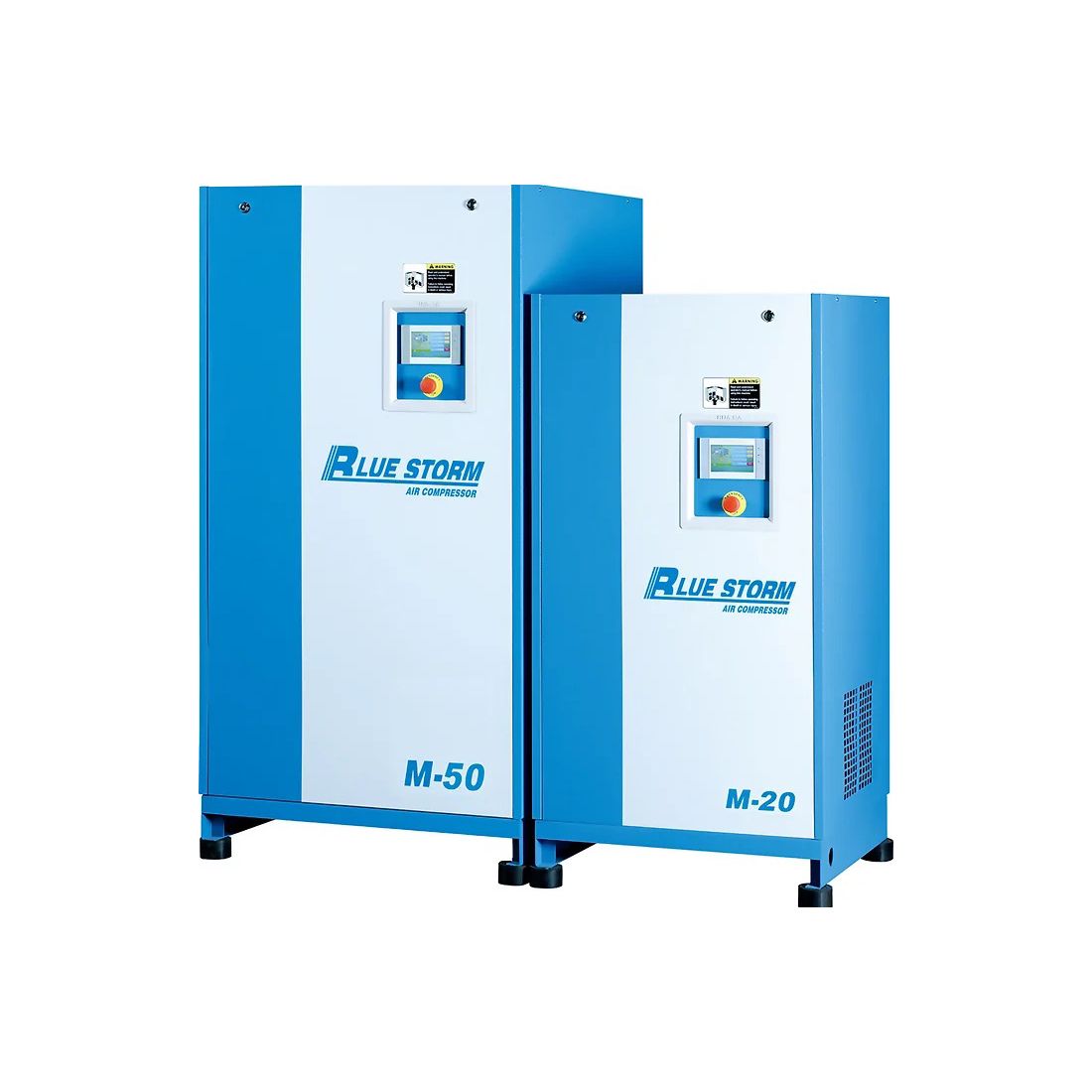

Why choose Blue Storm variable speed series?

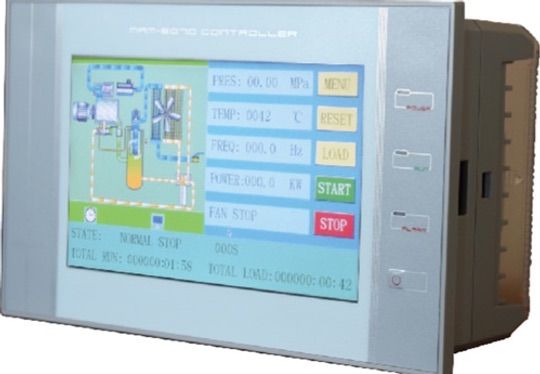

Intelligent Control System
Self Diagnosis
Advanced integrated software protection
Oil Filter
Minimum pressure valve
Rotor advantage

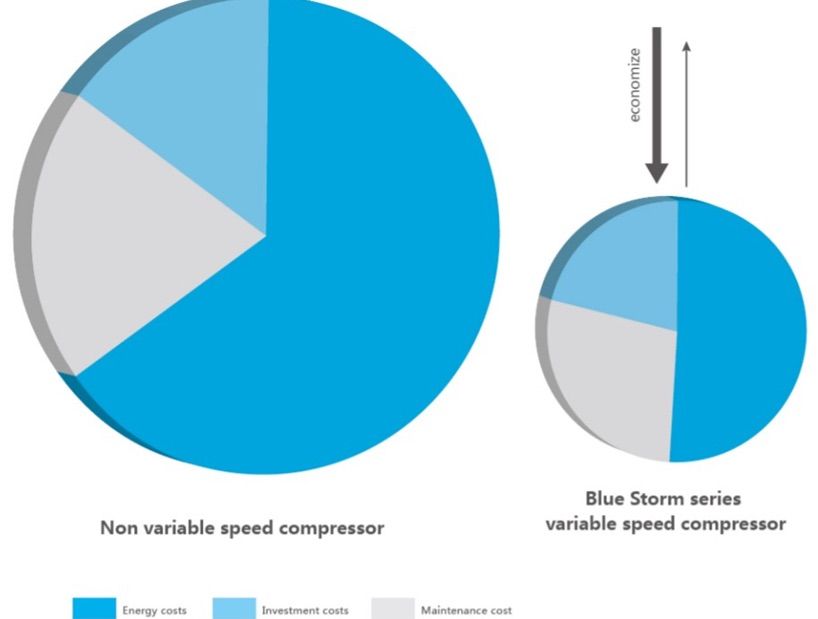

Energy saving
The Advantage Series units come fully packaged with pre-installed accessories. They are highlighted by our quick-ship program so the compressor arrives quickly, ready to install and operate. Each new assembled unit has a 3-year warranty on the compressor pump.

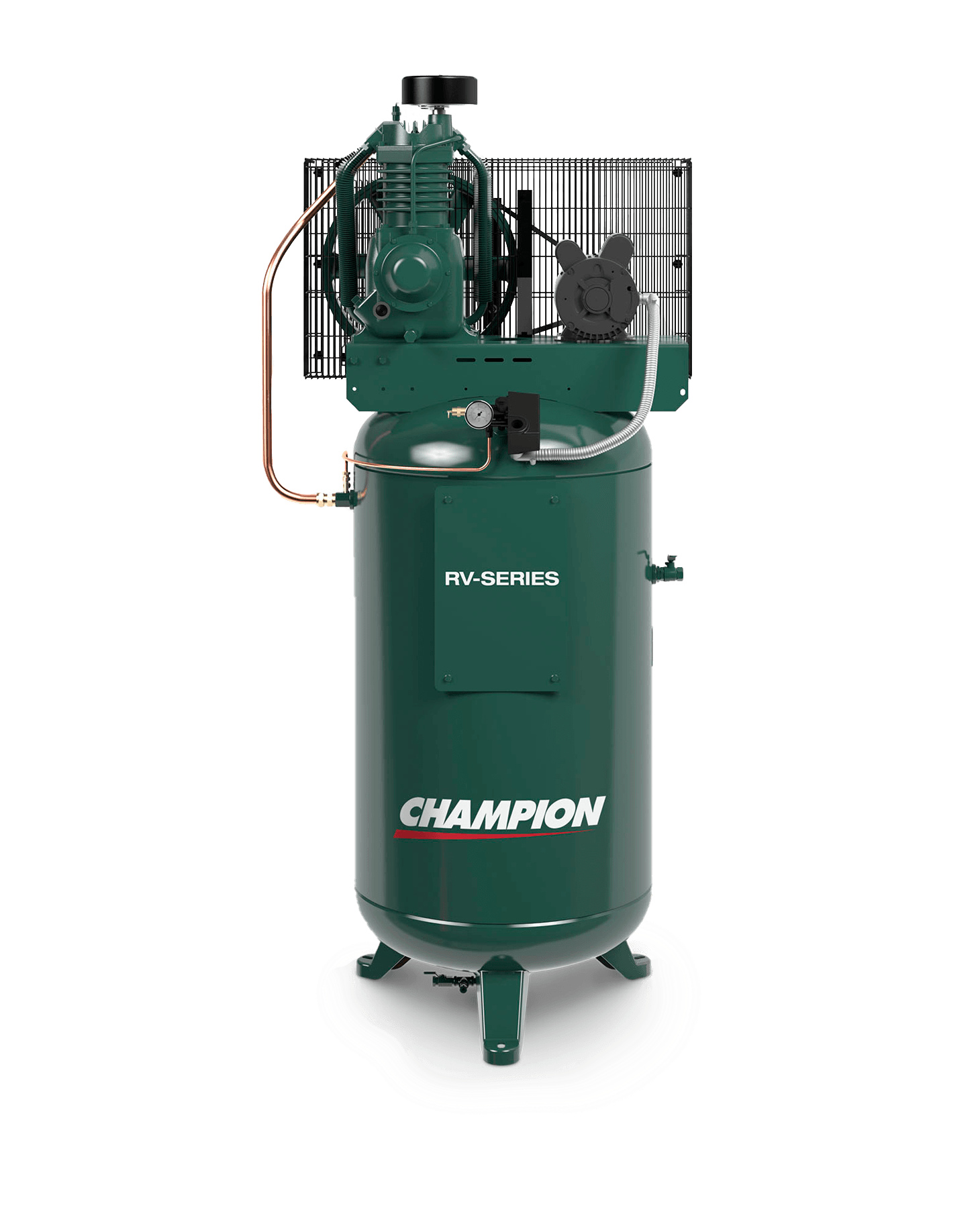

Two Stage, Splash Lubricated (5-25 HP) Reciprocating Air Compressor
Model | HP | Voltage | Tank Gallons | Style | Delivered CFM @ 175 | Net Weight |
---|---|---|---|---|---|---|
VR5-8 | 5 | 230-1, 208/230-3 | 80 | Vert | 17.3 | 535 |
HR5-8 | 5 | 230-1, 208/230-3 | 80 | Horiz | 17.3 | 535 |
HR5D-12 | 5 | 230-1, 208/230-3 | 120 | Horiz | 34.6 | 980 |
VR7F-8 | 7.5 | 230-1, 208/230-3 | 80 | Vert | 23.1 | 570 |
HR7D-12 | 7.5 | 230-1, 208/230-3 | 120 | Horiz | 51.6 | 1305 |
VR10-12 | 10 | 208/230-3 | 120 | Vert | 34.8 | 890 |
HR10-12 | 10 | 208/230-3 | 120 | Horiz | 34.8 | 890 |
HR10D-25 | 10 | 208/230-3 | 250 | Horiz | 69.6 | 1725 |
HRA15-12 | 15 | 208/230-3 | 120 | Horiz | 53.7 | 1110 |
HRA25-12 | 25 | 208/230-3 | 120 | Horiz | 90.1 | 1365 |
Search our online catalogs below. Call for availability and ask about special discount pricing.
