SCHULZ MODEL 3040

3040

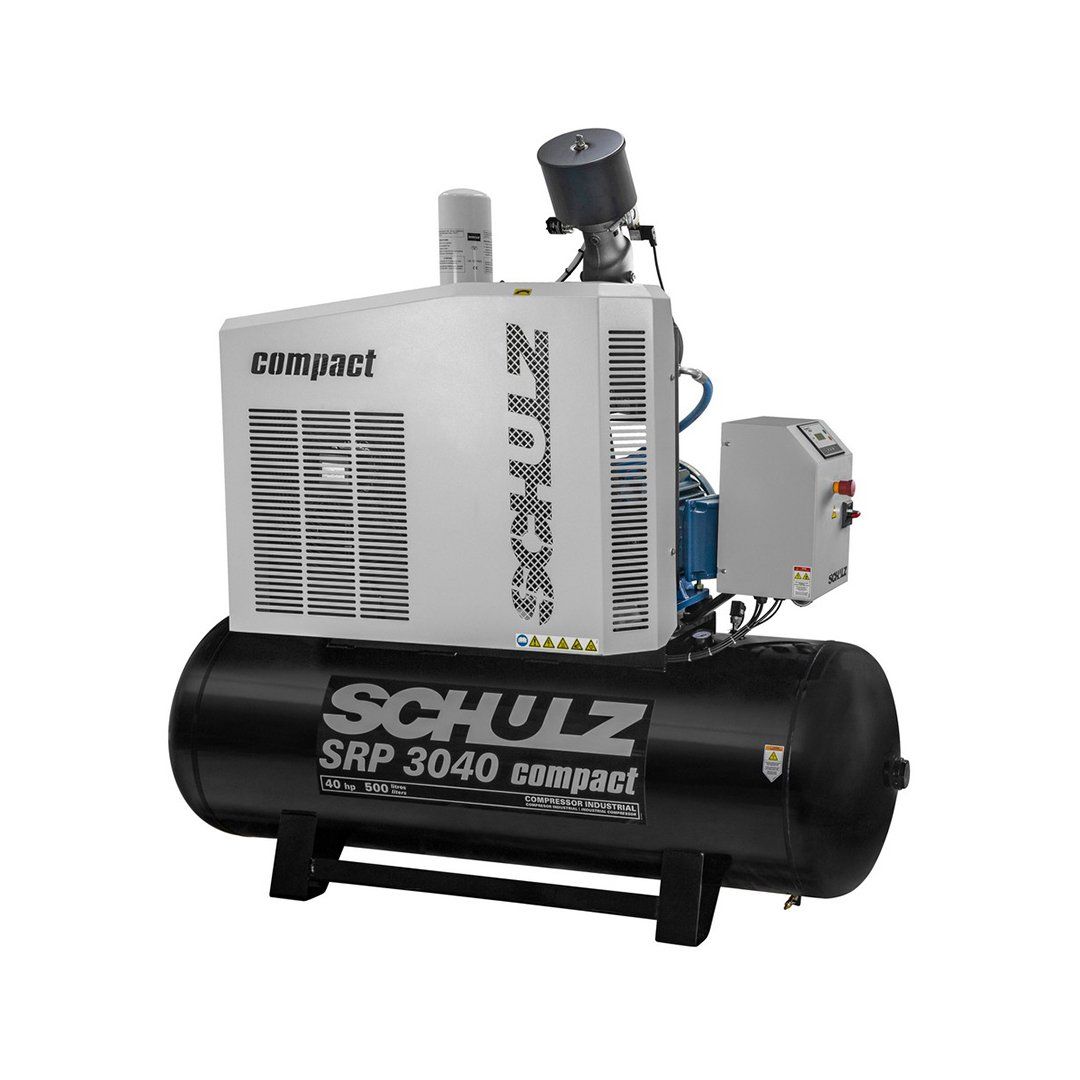

SCHULZ SRP 3040

The Compact Line was developed with products from 7.5 to 40 hp for companies that are looking for a reliable operation and low investment. Designed opened without enclosures, these compressors can operate 24 hours continuous and offer compressed air with high efficiency. Their compact design allows installation in small places with easy access to all maintenance components. Furthermore, Compact Rotary Screws come with a simple electric starter control that saves time and money during installation and operation. Compact is the solution for those seeking an excellent cost x benefit ratio.

• 150 CFM @ 100 PSI. 125 PSI Max
• TEFC, IP55, degree of protection electric motors dislaxion class
• Automatic starters with phase and sequence failure detection
• Lubricated air-end

• Low oil consumption
• Coolers are on the top of the machine, improves heat recovery at customers facilities
• Thermostatic valve for working temperature control
• Load/partial load/unload control from SRP 3040 II up to SRP 3075

• Proportional control for SRP 3100 and SRP 3200
• Maximum ambient temperature 113 °F/45ºC
• Synthetic oil
• Low maintenance costs
• Y Starter with soft-starter (optional)
