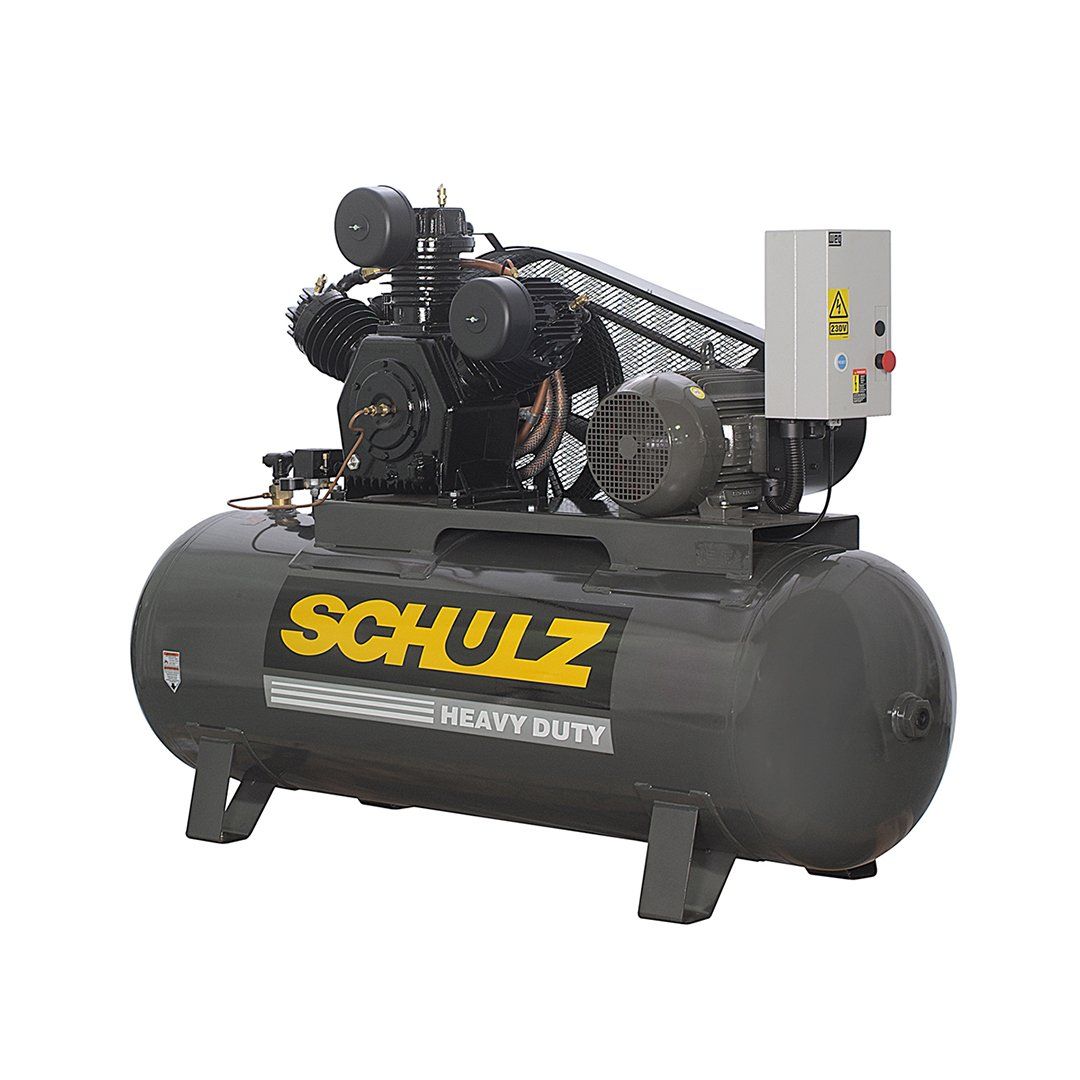

SCHULZ MODEL 15120HW60X-3

15120HW60X-3

SCHULZ MODEL 15120HW60X-3

V-series compressors are strong and durable equipment. Available in vertical or horizontal tank designs, they operate in low RPMs as two stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated with the product’s high cooling, generating compressed air with lower temperatures, with increased efficiency. These two stage models are built with mounted and prewired magnetic starters for safe operation and a simplified, ready to use compressor. The ASME certified safety valve and air receiver and high efficiency motors make Heavy Duty V-Series compressors the best choice for your company.

• Low RPM
• Balanced drive pulleys
• Pressure gauge indicator
• Manual condensate tank drain
• NEMA designed motors
• Heavy duty cast iron construction
• ASME air receivers
• Large intake filter/silencers

• ASME safety relief valves
• Enclosed belt guard
• Vertical and horizontal designs
• UL approved pressure switch
• 2 Year Pump Warranty
• Easy access to adjust belt tension
• T.E.F.C. motors standard 10/15/20 HP - Avoids dust and humidity inside the motor

• Oversized check valves - Low pressure drop
• Notched belts standard - Less maintenance
• Powder coated - Higher protection against extreme corrosion
