SCHULZ MODEL 3015 COMPACT

3015 COMPACT

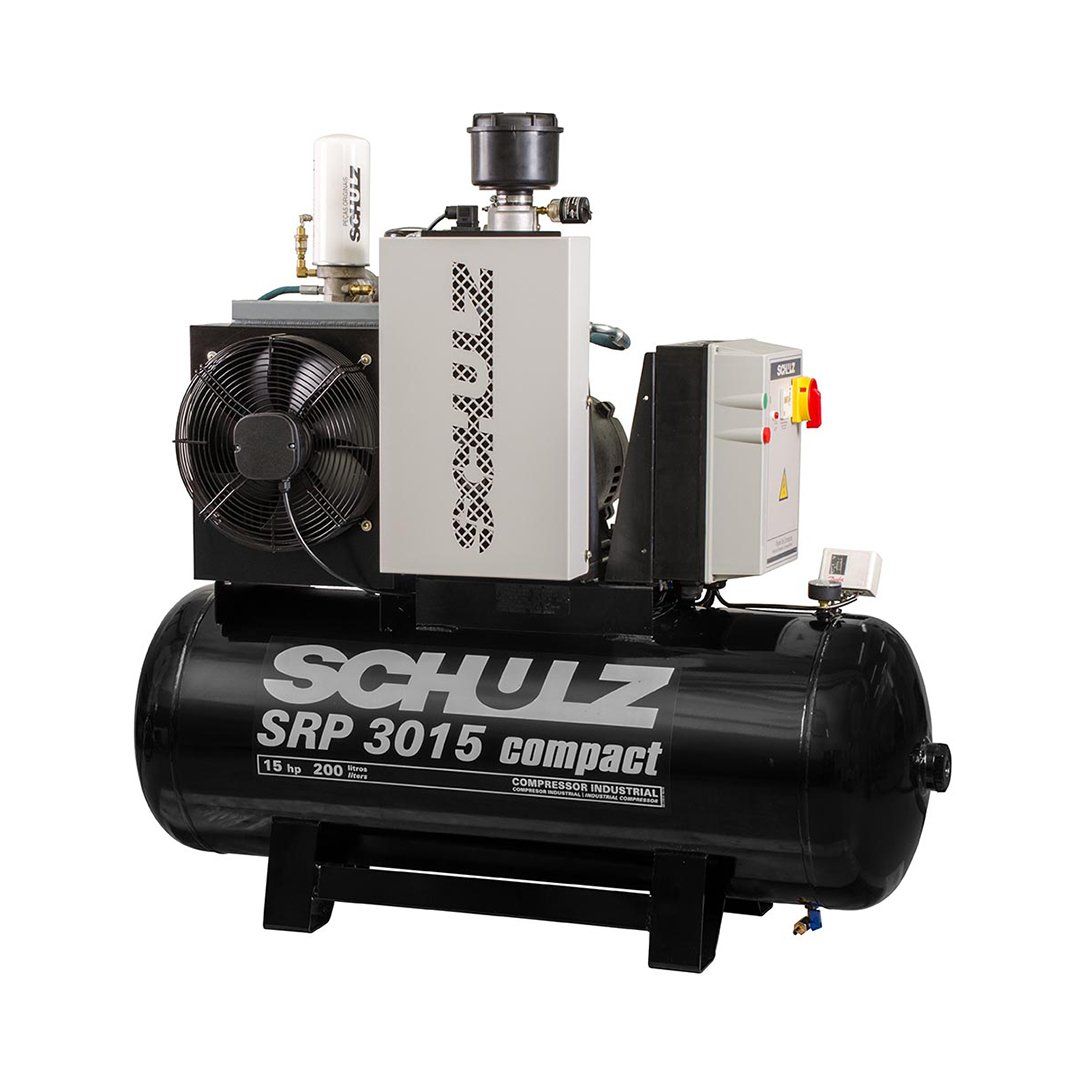

SCHULZ SRP 3015 COMPACT

The Compact Line was developed with products from 7.5 to 40 hp for companies that are looking for a reliable operation and low investment. Designed opened without enclosures, these compressors can operate 24 hours continuous and offer compressed air with high efficiency. Their compact design allows installation in small places with easy access to all maintenance components. Furthermore, Compact Rotary Screws come with a simple electric starter control that saves time and money during installation and operation. Compact is the solution for those seeking an excellent cost x benefit ratio.

• Mode: SRP 3015 Compact II
• Code: 970.3454-0/F
• Motor: 15HP 11KW
• Maximum Pressure: 8,6 Bar 125 PSIG

• Discharge Connection:3/4*
• 51 Free Air @125 PSI (CFM)
• 1,444 Free Air @125 psi (l/min)
• ASME Tank Gallon/type 53/Horiz

• Noise Level 86 dB(A)
• Net Weight 430lbs
• Width x Height x Depth 53x55x24 inches
